名称:气动三偏心蝶阀SD-C/E
描述:
气动三偏心蝶阀概述 三偏心蝶阀为偏心多层次金属密封结构,阀板及阀座用专用设备加工,保障该蝶阀的密封可靠,操作轻便及长时间的使用寿命。三偏心蝶阀为金属阀座,具有耐高、
021-5076-3702
产品介绍

 参数Parameter

空气驱动 Air driven

压缩空气5-7bar(可带手轮)Compressed air5-7bar (with a hand wheel)

公称通径Nominal diameter

80-1800mm

公称压力Nominal pressure

150-300LB

适用温度Applicable temperature

-196-450℃

连接方式Connection mode

对夹、法兰Clip flange

阀结构 Valve structure

三偏心three eccentric

阀体 Body

304、316、碳钢 Carbon steel

阀板 plate

304、316、碳钢 Carbon steel

密封材质 Sealing material

本体、合金Body Alloy

适用介质Applicable medium

气体、水及油类等Gas, water and oil

可选附件Optional accessories

限位开关、定位器、电磁阀、减压阀Limit switch, locator, electromagnetic valve, pressure reducing valve


电、气动三偏心蝶阀概述Electric, pneumatic eccentric butterfly valve Overview
三偏心蝶阀为偏心多层次金属密封结构,阀板及阀座用专用设备加工,保障该蝶阀的密封可靠,操作轻便及长时间的使用寿命。三偏心蝶阀为金属阀座,具有耐高、低温;耐高压;允许介质中有微小颗粒。产品广泛应用于电力、冶金、化工、石油、危险气体及电子等行业。
Eccentric multi-level metal seal structure, the valve plate and seat of the three eccentric butterfly valve with special equipment for processing and protection of the butterfly valve seal is reliable, easy operation and long service life. The triple eccentric butterfly valve, metal valve seat, resistant to high and low temperature; high pressure; allow small particles in the medium. The products are widely used in electric power, metallurgy, chemical, petroleum, dangerous gases and electronics industries.

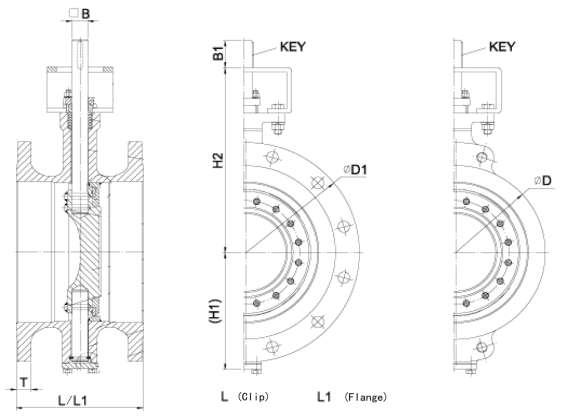

 规格示例图series specifications example in Figure

尺寸表(ANSI)
SIZE inch L L1 H1 H2 D D1 □B B1
80 3” 47 180 121 216 125 191 11 18
100 4” 53 190 140 235 155 229 11 18
125 5” 56 200 148 255 185 254 14 23
150 6” 56 210 165 260 215 279 14 23
200 8” 62 230 196 292 265 343 19 28
250 10” 69 250 227 323 325 406 22 28
300 12” 79 270 268 406 382 483 27 28
350 14” 79 290 295 418 415 535 32 47
92
400 16” 102 310 325 488 470 597 32 47
450 18” 114 330 346 518 530 635 36 47
500 20” 127 350 399 565 585 700 36 47
600 24” 154 390 437 622 692 813 46 56
