名称:气动不锈钢对焊隔膜阀
描述:
该隔膜阀分普通工业级与卫生级,产品设计紧凑,体积小重量轻,开关速度快捷,主要用于食品与医药行业以及水处理膜分离等行业。
021-5076-3702
产品介绍
 参数Parameter
膜片尺寸diaphragm size 10
工作压力working pressure 0-6bar
控制压力control pressure 5-7bar/4.5-5.5bar
隔膜材料diaphragm material FPM、EPDM、PTFE
控制功能Control function 常闭normally closed .常开normally open 双作用double acting
控制介质control medium <40℃
环境条件ambient conditions 使用温度<120℃
气动隔膜阀概述Overview of pneumatic diaphragm
该隔膜阀分普通工业级与卫生级,产品设计紧凑,体积小重量轻,开关速度快捷,主要用于食品与医药行业以及水处理膜分离等行业。
The diaphragm valve sub-ordinary industrial-grade health class, product design is compact, light weight, small size, fast switching speed, mainly for the food and pharmaceutical industries as well as water treatment and membrane separation industry.

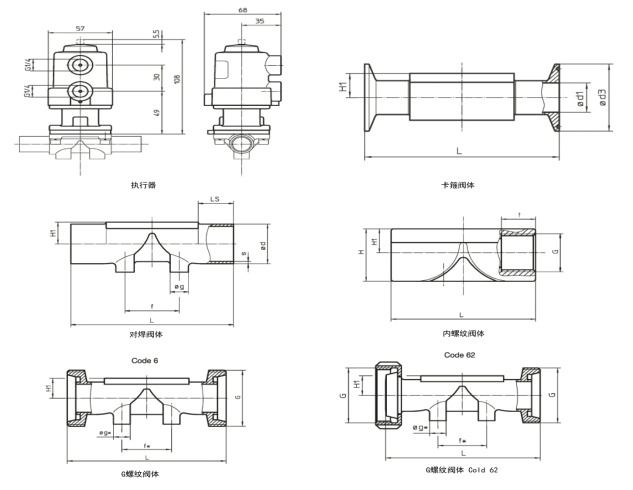

规格示例图series specifications example in Figure


尺寸表


通径
DN
英寸
G
f øg L L
code 62
LS H1 ød×s H t G Ød1 Ød3
DIN IS O.D.
4825
ASME/BPE

10 3/8” DIN
11850
108 - - 12 - - - - - - 10 34
15 1/2 108 - - 12 - - - - - - 16 34
15 1/2” ASME
BPE
88.9 - - 12 - - - - - - 9.40 25
20 3/4” 101.6 - - 12 - - - - - - 15.75 25

10 3/8 30 13.5 108 - 25 12 - 9.53*1.2 9.53*0.89 - - - - -
15 1/2 30 13.5 108 - 25 12 18*1.5 12.7*1.2 12.7*1.65 - - - - -
20 3/4 30 13.5 108 - 25 12 - 19.05*1.2 19.06*1.65 - - - - -

12 3/8 30 13.5 55 - - 10.5 - - - 23 13 - - -
15 1/2 30 13.5 68 - - 13.5 - - - 29 15 - - -

10 3/8 30.0 13.5 118 116 - 12 - - - - - Rd28×1/8 - -
15 1/2 30.0 13.5 118 116 - 12 - - - - - Rd34×1/8 - -
