名称:西门子电动调节阀
描述:
参数Parameter 公称压力Nominalpressure PN1.64.0 工作温度OperatingTemperature -15˞+220℃ 环境温度Ambienttemperature -10˞+60℃ 固有流量特性Inherentflow 直线等百分比Percentageofthestraightline,etc. 泄流量Discharg
021-5076-3702
产品介绍
参数Parameter
公称压力Nominal pressure PN1.6  4.0
工作温度 Operating Temperature -15~+220℃
环境温度 Ambient temperature -10~+60℃
固有流量特性 Inherent flow 直线  等百分比 Percentage of the straight line, etc.
泄流量 Discharge 0--0.02% Kvs
电源电压 Power supply voltage 24V/50HZ、220V/50HZ
输入、反馈信号  Input and feedback signal 0-10VDC、4-20Ma

零件名称 Part Name 材料 Material
阀体、阀盖 Body, bonnet WCB(ZG230-450) WCC(ZG270-500) WC6(ZG15CrMo) CF8(304) CF8M(316) CF3(304L) CF3M(316L)
阀芯、阀座 Spool, the valve seat 304(0Crl8Ni9) 316(0Crl7Nil2MO2) 316(00Crl7Ni4Mo2) 堆焊司钛莱合金  17-4PH(沉淀硬化型不锈钢)
填料 Filler V型PTFE  V型增强PTFE   柔性石墨 V-shaped PTFE V-type reinforced PTFE Flexible Graphite
阀杆 Stem 304   316  316L 17-4PH

电动调节阀概述Overview of electric control valve
适用于化工、石油、冶金、电力、食品、药业等行业的生产过程自动控制系统。采用德国西门子(SIEMENS)电动执行器,可以接受各种控制信号,并具有断电自动关闭热源功能、在系统突然断电情况下保护下有设备,实现最佳的安全控制。
Applicable to chemical, petroleum, metallurgy, electric power, food, pharmaceutical and other industries in the production process automatic control system. SIEMENS (SIEMENS), the use of electric actuators, can accept a variety of control signals, and has a power off automatically shut down the heat source, the system under the sudden power failure to protect the equipment, to achieve the best security control

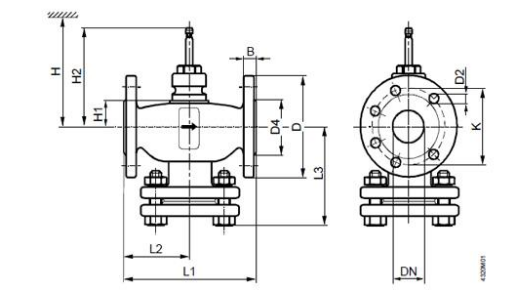

规格示例图series specifications example in Figure

 尺寸表(GB)
公称通径DN 25 40 50 65 80 100 125 150
L1 160 200 230 290 310 350 400 480
L2 80 100 115 145 155 175 200 240
L3 104 126 143 173 185 205 232 275
H1 34 39 39 60 60 91 102 118
H2 130.5 135.5 135.5 156.5 156.5 207.5 218.5 234.5
B 16 18 20 20 22 24 26 26
D 115 150 165 185 200 220 250 285
D2 4*14 4*19 4*19 4*19 8*19 8*19 8*19 8*23
D4 65 84 99 118 132 156 184 211
K 85 110 125 145 160 180 210 240
额定流量系数KVS 10 25 40 63 100 160 250 400
重量(kg) 5.9 10.1 15.5 17.3 22.9 33 48 68
