参数Parameter

NO	零件 PART NAME	材料MATERIALS
1	阀体BODY	CF8+PFA/FEP LINDE	WCB+PFA/FEP LINED
2	阀盖CAP	CF8+PFA/FEP LINDE	WCB+PFA/FEP LINED
3	阀座SEAT	PTFE/TFM1600
4	阀球BALL	CF8+PFA/FEP LINDE	WCB+PFA/FEP LINED
5	体盖螺栓BODY BOLT	A193-B8	A193-B7
6	体盖螺母BODY NUT	A194-8	A194-2H
7	阀杆STEM	304+PFA/FEP LINED
8	填料 GLAND PACKING	PTFE
9	填料压板 PACKING PLATE	CF8	WCB
10	电动执行器 Electric actuator	根据客户的要求 according to customer requirements
11	汽缸AIR CYLINDER
12	电磁阀SOLENOID VALVE
13	行程开关LIMIT SWITCH
14	过滤减压器AIR PRESSURE REGULATOR-FILTER

电、气动动衬氟球阀概述Electric、Pneumatic fluorine ball ball valve Overview
衬氟球阀是一种O型球阀，由于该阀内腔及球体均采用高压注塑工艺，衬有耐腐蚀、耐老化的氟塑料FEP（简称F46）或PTFE(简称F4)故具有可靠的耐腐蚀性和密封性，能广泛适用于化工、石油、冶金、医药电力等控制系统，对酸、碱等强腐蚀性气体、液体等介质的控制。Lined ball valve is a O-ball valve, the valve cavity and sphere are used to high-pressure injection molding process, is lined with corrosion-resistant, the fluoroplastics FEP (F46) anti-aging or PTFE (referred to F4), it has a reliablecorrosion resistance and sealing, widely used in the chemical, petroleum, metallurgy, medicine, electricity and control system, the control of the strong acid, alkali and other corrosive gases, liquids and other media.

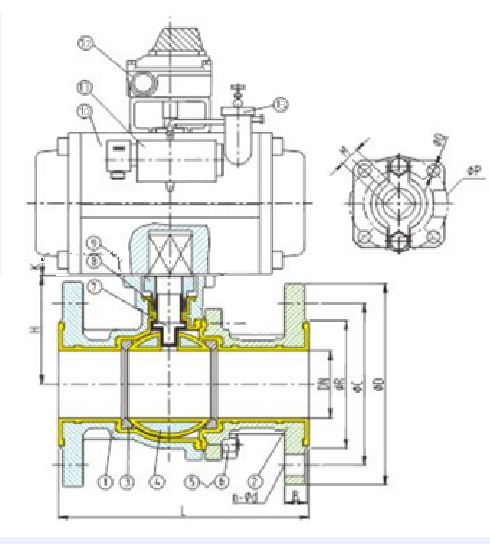

规格示例图series specifications example in Figure

尺寸表(GB/DIN）Size Chart (GB/DIN)

SIZE	DN	L		H	R		C	D	B		n-фd	M/K	Q	P	ISO5211
		GB  PN16	DIN PN16		GB  PN16	DIN PN16	GB/DIN  PN16	GB /DIN PN16	GB  PN16	DIN PN16	GB  PN16
1/2”	15	130	130	60	46	45	65	95	14	16	4-ф14	11	7	50	F05
3/4”	20	130	150	60	56	58	75	105	16	18	4-ф14	11	7	50	F05
1”	25	140	160	60	65	68	85	115	16	18	4-ф14	11	7	50	F05
1-1/4”	32	165	180	71	76	78	100	140	18	18	4-ф18	14	9	70	F07
1-1/2”	38.2	165	200	76	84	88	110	150	18	18	4-ф18	14	9	70	F07
2”	50	203	230	84	99	102	125	165	20	18	4-ф18	14	9	70	F07
2-1/2”	63.5	222	290	107	118	122	145	185	20	18	8-ф18	17	11	102	F10
3”	76	241	310	117	132	138	160	200	20	20	8-ф18	17	11	102	F10
4”	100	305	350	144	156	158	180	220	22	20	8-ф18	22	11	102	F10
5”	125	356	400	185	184	188	210	250	22	22	8-ф18	27	14	125	F12
6”	150	394	480	207	211	212	240	285	24	22	8-ф22	36	18	140	F14
