名称:电动两片式螺纹球阀
描述:
电动螺纹球阀概述Electro threaded ball valve Overview 该系列螺纹球阀,外形美观,体积小且重量轻,同时阀轴防静电,防爆出,有蝶型弹簧自动压紧填料。适合机械设备配套、水处理加药、气
021-5076-3702
产品介绍
参数Parameter
电驱动Electric drive 24VDC、220VAC、380VAC
公称通径Nominal diameter 8-100mm
公称压力Nominal pressure 1.6-6.3MPa
适用温度Suitable temperature PTFE:-29-+178℃
EK:-29-+250℃
连接方式Connection mode 螺纹Thread
阀结构Valve structure 两片式、Two. piece type

阀体Body  304、316、316L碳钢Carbon steel

阀球Valve  304、316、316L
密封材质Sealing material PTFE、EK、
适用介质Applicable medium 气体、水、及油类Gas, water, and oil

可选附件Optional accessories 限位开关、定位器、电磁阀、减压阀Limit switch, locator, electromagnetic valve, pressure reducing valve

电气动螺纹球阀概述Electro-pneumatic threaded ball valve Overview

该系列螺纹球阀,外形美观,体积小且重量轻,同时阀轴防静电,防爆出,有蝶型弹簧自动压紧填料。适合机械设备配套、水处理加药、气体管道等选用。
This series of ball valve, beautiful appearance, small volume and light weight, and the valve shaft anti-static,anti explosion, a butterfly spring automatic compression packing. Suitable for mechanical equipment, water treatment dosing, gas pipelines and other selected.

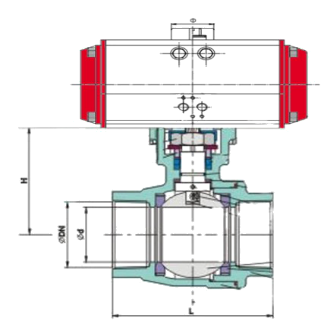

规格示例图series specifications example in Figure

尺寸表
通径(mm) 英寸” 尺寸(mm)
L Фd IS0 5211 H øDN
8 1/4 67 10.6 F03-F04 42 NPT
BSP
PT
DIN
10 3/8 67 12.7 F03-F04 42
15 1/2 67 15 F03-F04 42
20 3/4 72.4 20 F03-F05 49
25 1 85 25 F04-F05 58
32 1 1/4 94 32 F04-F07 63
40 1 1/2 105 38 F05-F07 71
50 2 125 50 F05-F07 78
65 2 1/2 155 63.5 F07-F10 101.5
80 3 173 76 F07-F10 109
