名称:电动双偏心蝶阀
描述:
电动双偏心蝶阀概述 双偏心蝶阀体积小,重量轻,密封性能好,口径大时,成本较球阀底很多,从而广泛代替球阀应用!该系列蝶阀主要应用于化工、气体、船舶、医药、机械制造、电
021-5076-3702
产品介绍
参数Parameter

电驱动Electric drive

24VDC、220VAC、380VAC

公称通径Nominal diameter

50-600mm

公称压力Nominal pressure

1.0-6.4Mpa

适用温度Applicable temperature

-30 -̴210℃

连接方式Connection mode

对夹Clip

阀结构 Valve structure

二偏心  Two eccentric,

阀体 Body

304、316、碳钢 Carbon steel

阀板 plate

304、316、碳钢Carbon steel

密封材质 Sealing material

PTFE

适用介质Applicable medium

气体、水及油类等Gas, water and oil

可选附件Optional accessories

限位开关、定位器、电磁阀、减压阀Limit switch, locator, electromagnetic valve, pressure reducing valve

电、气动双偏心蝶阀概述Electric, pneumatic double eccentric butterfly Overview
双偏心蝶阀体积小,重量轻,密封性能好,口径大时,成本较球阀底很多,从而广泛代替球阀应用!该系列蝶阀主要应用于化工、气体、船舶、医药、机械制造、电子及水处理等行业。
Double eccentric butterfly valve small volume, light weight, good sealing performance, large-caliber, the more costly than ball valves end of a lot, which is widely in place of a ball valve applications. The series butterfly valve is mainly used in chemical, gas, shipbuilding, medicine, machinery manufacturing, electronics and water treatment industries.

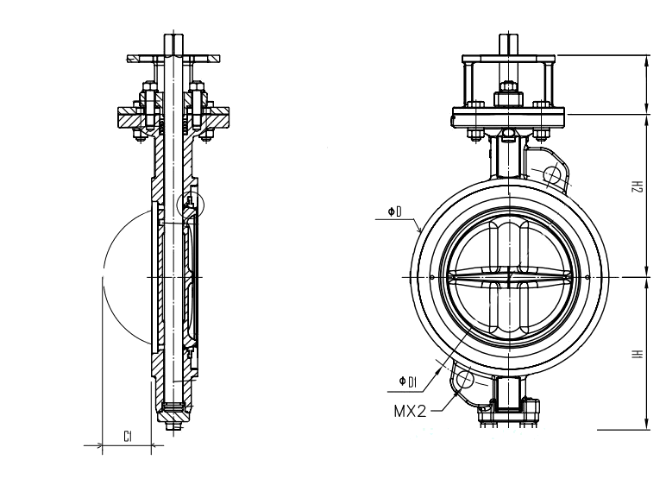

规格示例图series specifications example in Figure

尺寸表(ANSI)
      SIZE

 Face to face L H1 H2 фD ФD1 C1
50 43 99 178 92 37 2
65 46 110 185 108 63 15
80 47 128 210 126 78 22
100 53 150 227 153 95 25
125 57 163 240 184 118 36
150 56 176 255 212 143 50
200 62 206 300 268 188 70
250 68 238 340 326 236 90
300 78 269 390 375 282 106
350 78/92 306 426 416 322 125
400 102 342 490 476 371 140
450 114 370 515 534 418 157
500 127 399 550 588 566 177
600 154 455 640 692 570 210
600 154 455 640 692 570 210
