名称:电动薄型球阀
描述:
电动薄型球阀概述 薄型球阀一如法兰球阀,拥有法兰球阀的所有设计参数,如:阀杆防静电、防爆出;有蝶型弹簧自动压紧填料,使用寿命长等等。同时缩短了阀体结构,减轻了阀体重
021-5076-3702
产品介绍

电驱动Electric drive

24VDC、220VAC、380VAC

公称通径Nominal diameter

15-250mm

公称压力Nominal pressure

1.6-4.0MPa

适用温度Applicable temperature

PTFE:-29-+178℃

EK:-29-+250℃

连接方式Connection mode

法兰,对夹Flange  on the clip

阀结构Valve structure

一体式- Integrated

阀体 Body

304、 316、316L碳钢Carbon steel

阀球 Valve

304、 316、316L

密封材质Sealing material

PTFE、EK

适用介质Applicable medium

气体、水、及油类Gas, water, and oil

可选附件Optional accessories

限位开关、定位器、电磁阀、减压阀Limit switch, locator, electromagnetic valve, pressure reducing valve

电气动薄型球阀概述Electro-pneumatic thin ball valve Overview
薄型球阀一如法兰球阀,拥有法兰球阀的所有设计参数,如:阀杆防静电、防爆出;有蝶型弹簧自动压紧填料,使用寿命长等等。同时缩短了阀体结构,减轻了阀体重量,更便于安装及后期维护。适合多种工矿选型,化工、医药、能源、水处理及船舶、电子等行业有广泛的使用。
As set out in a thin ball valve flanged ball valves, flange ball valves, all design parameters, such as: stem anti-static, the explosion-proof; butterfly spring automatically compress packing, long service life. While reducing body structure, reducing the body weight, easier installation and later maintenance. Widely used for a variety of mining selection, chemical, pharmaceutical, energy, water and shipbuilding, electronics and other industries.

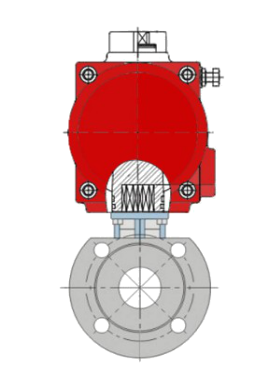

规格示例图series specifications example in Figure

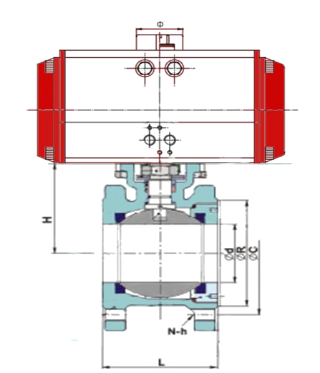

尺寸表(DIN)
通径(mm) PN L d R C H N-h
15 1/2” 10
16
25
40
42 15 45 65 48 4-12
20 3/4” 44 20 58 75 53 4-12
25 1” 50 25 68 85 62 4-12
32 1-1/4” 60 32 78 100 72 4-16
40 1-1/2” 65 40 88 110 78 4-16
50 2” 80 50 102 125 86 4-16
65 2-1/2” 10/16 110 63.5 122 145 108 4-16
25/40 8-16
80 3” 10/16 120 76 138 160 116 8-16
25/40
100 4” 10/16 150 95 158 180 139 8-16
25/40 162 190 8-20
125 5” 10/16 180 118 118 210 176 8-16
25/40 220 8-24
150 6” 10/16 225 142 212 240 192 8-20
25/40 218 250 8-24
