产品介绍
| 使用介质Use the media | 压缩空气、无腐蚀性气体和油；compressed air, non-corrosive gas and oil; |
| 压力范围pressure ranges | 双作用2-8bar,单作用2-8bar double-acting 2-8bar, single acting 2-8bar |
| 工作温度Operating Temperature | 标准型（使用丁腈橡胶O型圈）-20℃-+80℃Standard (nitrile rubber O-ring) -20 ° C - +80 ° C |
| 低温型（使用低温丁腈胶O型圈）-35℃-+80℃Low temperature (low temperature nitrile rubber O-ring) -35 ° C - +80 ° C | |
|
高温型（使用氟橡胶O型圈）-15℃-+150℃ High temperature (using a Viton O-ring) -15 ℃ - +150 ° C |
|
| 行程调整Stroke adjustment | 在打开位置有±4°的可调范围adjustable range of ± 4 ° in the ope position |
| 润滑Lubrication | 在正常工作条件下，不需添加润滑剂in normal operating conditions, without adding lubricant |
| 安装Installation | 适合室内或室外安装 indoor or outdoor installation |
| 最高使用压力Maximum operating pressure | 输入气压不超过10bar: the input air pressure does not exceed 10bar |

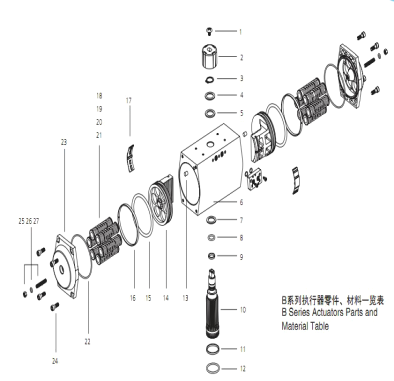

| 名称Description | 材料STANDARD METERIAL |
|
1指示器螺钉 Indicator screw |
塑料Plastic（ABS） |
|
2指示器Indicator |
塑料Plastic（ABS） |
|
3弹性挡圈Circlip |
不锈钢Stainless steel(304) |
| 4垫片Thrust washer | 不锈钢Stainless steel(304) |
|
5外垫片Outside washer |
工程塑料Engineering plastics |
| 6缸体Body | 铸铝Extruded alluminum alloy |
| 7上轴“O”型圈O-ring(pinion top) | 氟橡胶、丁腈橡胶Viton/NBR |
| 8上轴支承圈Bearing(pinion top) | 工程塑胶Engineering plastics |
|
9内垫片lnside washer |
工程塑胶Engineering plastics |
| 10轴pinion | 不锈钢Stainless steel(304) |
|
11下轴支承圈Bearing(pinion bottom) |
工程塑胶Engineering plastics |
| 12下轴“O“型圈o-ring(pinion bottom) | 氟橡胶、丁腈橡胶Viton/NBR |
| 13塞头plug | 橡胶NBR |
| 14活塞piston | 铸铝/铸钢Cast alluminum/casting |
| 15活塞“O“型圈o-ring(pinion) | 氟橡胶、丁腈橡胶Viton/NBR |
| 16活塞支承圈Bearing(pinion) | 工程塑料Engineering plastics |
| 17活塞导板Guidel(pinion) |
尼龙66 Nylon 66 |
| 18弹簧spring |
弹簧钢Spring steel |
| 19弹簧左套sping retainer(l) |
尼龙66 Nylon 66 |
| 20弹簧右套sping retainer(R) |
尼龙66 Nylon 66 |
| 21弹簧套连杆retainer connector |
铜Copper |
| 22端盖“O”型圈o-ring(end-cap) | 氟橡胶、丁腈橡胶Viton/NBR |
| 23端盖end-cap | 铸铝Extruded alluminum alloy |
| 24端盖紧固螺杆end-cap screw | 不锈钢Stainless steel(304) |
| 25调节螺杆adjust screw | 不锈钢Stainless steel(304) |
| 26调节螺杆“O”型圈o-ring(adiust scrow) | 不锈钢Stainless steel(304) |
| 27调节螺杆螺母nut(adjust screw) | 不锈钢Stainless steel(304) |
