产品介绍

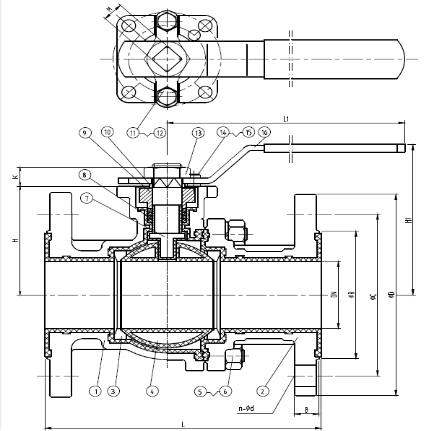

参数Parameter| NO |
零件 PART NAME |
材料MATERIALS | |
| 1 | 阀体BODY | CF8+PFA/FEP LINDE | WCB+PFA/FEP LINED |
| 2 | 阀盖CAP | CF8+PFA/FEP LINDE | WCB+PFA/FEP LINED |
| 3 | 阀座SEAT | PTFE/TFM1600 | |
| 4 | 阀球BALL | CF8+PFA/FEP LINDE | WCB+PFA/FEP LINED |
| 5 | 体盖螺栓BODY BOLT | A193-B8 | A193-B7 |
| 6 | 体盖螺母BODY NUT | A194-8 | A194-2H |
| 7 | 阀杆STEM | 304+PFA/FEP LINED | |
| 8 |
填料 GLAND PACKING |
PTFE | |
| 9 |
填料压板 PACKING PLATE |
CF8 | WCB |
| 10 |
短方套 Short sieeve |
304 | 45 |
| 11 | 螺柱 BOLT | A193-B8 | A193-B7 |
| 12 | 螺母NUT | A194-8 | A194-2H |
| 13 | 薄型螺母Thin nut | 304 | |
| 14 |
定位螺丝 LOCATING SCREW |
304 | |
| 15 | 螺母NUT | 304 | |
| 16 | 手柄 handle | 304+PVC | |
尺寸表(GB/DIN）Size Chart (GB/DIN)
| SIZE | DN | L | H | R | C | D | B | n-фd | M/K | Q | P | ISO5211 | |||
| GB PN16 | DIN PN16 | GB PN16 | DIN PN16 | GB/DIN PN16 | GB /DIN PN16 | GB PN16 | DIN PN16 | GB PN16 | |||||||
| 1/2” | 15 | 130 | 130 | 60 | 46 | 45 | 65 | 95 | 14 | 16 | 4-ф14 | 11 | 7 | 50 | F05 |
| 3/4” | 20 | 130 | 150 | 60 | 56 | 58 | 75 | 105 | 16 | 18 | 4-ф14 | 11 | 7 | 50 | F05 |
| 1” | 25 | 140 | 160 | 60 | 65 | 68 | 85 | 115 | 16 | 18 | 4-ф14 | 11 | 7 | 50 | F05 |
| 1-1/4” | 32 | 165 | 180 | 71 | 76 | 78 | 100 | 140 | 18 | 18 | 4-ф18 | 14 | 9 | 70 | F07 |
| 1-1/2” | 38.2 | 165 | 200 | 76 | 84 | 88 | 110 | 150 | 18 | 18 | 4-ф18 | 14 | 9 | 70 | F07 |
| 2” | 50 | 203 | 230 | 84 | 99 | 102 | 125 | 165 | 20 | 18 | 4-ф18 | 14 | 9 | 70 | F07 |
| 2-1/2” | 63.5 | 222 | 290 | 107 | 118 | 122 | 145 | 185 | 20 | 18 | 8-ф18 | 17 | 11 | 102 | F10 |
| 3” | 76 | 241 | 310 | 117 | 132 | 138 | 160 | 200 | 20 | 20 | 8-ф18 | 17 | 11 | 102 | F10 |
| 4” | 100 | 305 | 350 | 144 | 156 | 158 | 180 | 220 | 22 | 20 | 8-ф18 | 22 | 11 | 102 | F10 |
| 5” | 125 | 356 | 400 | 185 | 184 | 188 | 210 | 250 | 22 | 22 | 8-ф18 | 27 | 14 | 125 | F12 |
| 6” | 150 | 394 | 480 | 207 | 211 | 212 | 240 | 285 | 24 | 22 | 8-ф22 | 36 | 18 | 140 | F14 |
| SIZE | DN | L | H | R | C | D | B | n-фd | M | K | Q | P | ISO5211 | |||||
|
CLSS 150 |
JIS 10K |
CLSS 150 |
JIS 10K |
CLSS 150 |
JIS 10K |
CLSS 150 |
JIS 10K |
CLSS 150 |
JIS 10K |
|||||||||
| 1/2” | 15 | 127 | 60 | 35 | 51 | 60.3 | 70 | 90 | 95 | 11.5 | 12 | 4-ф15.9 | 4-ф15 | 11 | 11 | 7 | 50 | F05 |
| 3/4” | 20 | 127 | 60 | 43 | 56 | 70 | 75 | 100 | 100 | 12.5 | 14 | 4-ф15.9 | 4-ф15 | 11 | 11 | 7 | 50 | F05 |
| 1” | 25 | 127 | 60 | 51 | 67 | 79.5 | 90 | 110 | 125 | 13 | 14 | 4-ф15.9 | 4-ф19 | 11 | 11 | 7 | 50 | F05 |
| 1-1/4” | 32 | 140 | 71 | 63.5 | 81 | 89 | 105 | 115 | 140 | 13.5 | 16 | 4-ф15.9 | 4-ф19 | 14 | 14 | 9 | 70 | F07 |
| 1-1/2” | 38.2 | 165 | 72 | 73 | 81 | 98.4 | 105 | 125 | 140 | 14.5 | 16 | 4-ф15.9 | 4-ф19 | 14 | 14 | 9 | 70 | F07 |
| 2” | 50 | 178 | 84 | 92 | 96 | 120.7 | 120 | 150 | 155 | 16 | 16 | 4-ф19.1 | 4-ф19 | 14 | 14 | 9 | 70 | F07 |
| 2-1/2” | 63.5 | 190 | 107 | 105 | 116 | 139.7 | 140 | 180 | 175 | 17.5 | 18 | 4-ф19.1 | 4-ф19 | 17 | 17 | 11 | 102 | F10 |
| 3” | 76 | 203 | 117 | 127 | 126 | 152.5 | 150 | 190 | 180 | 19.1 | 18 | 4-ф19.1 | 8-ф19 | 17 | 17 | 11 | 102 | F10 |
| 4” | 100 | 229 | 144 | 157 | 151 | 190.5 | 175 | 230 | 210 | 24 | 18 | 8-ф19.1 | 8-ф19 | 22 | 22 | 11 | 102 | F10 |
| 5” | 125 | 245 | 235 | 186 | 182 | 216 | 210 | 255 | 250 | 24 | 20 | 8-ф22.3 | 8-ф23 | 27 | 27 | 14 | 125 | F12 |
| 6” | 150 | 267 | 235 | 216 | 212 | 241.3 | 240 | 280 | 280 | 25.4 | 22 | 8-ф22.3 | 8-ф23 | 36 | 36 | 18 | 140 | F14 |
