参数Parameter
|
驱动drive |
手轮、手柄 VOLANTE,MANEJAR |
|
公称通径Nominal diameter |
50-600mm |
|
公称压力Nominal pressure |
1.0-2.5Mpa |
|
适用温度Applicable temperature |
-30-+210℃ |
|
连接方式Connection mode |
对夹 Clip |
|
阀结构 Valve structure |
二偏心 Two eccentric |
|
阀体 Body |
304、316、碳钢 Carbon steel |
|
阀板 plate |
304、316、碳钢Carbon steel |
|
密封材质 Sealing material |
本体、合金Body, alloy |
|
适用介质Applicable medium |
气体、水及油类等Gas, water and oil |
结构形式：对夹式、多耳式 Structure:Wafer, ear typ
对夹式Wafer
多耳式ear type

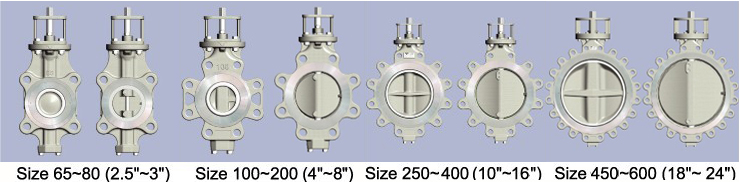

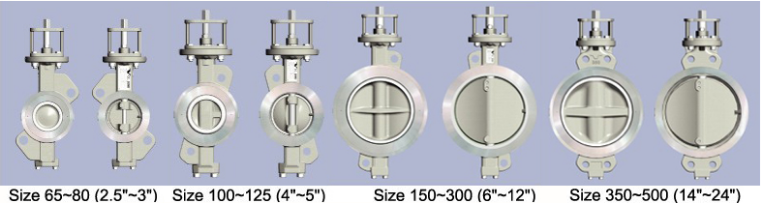

规格示例图series specifications example in Figure

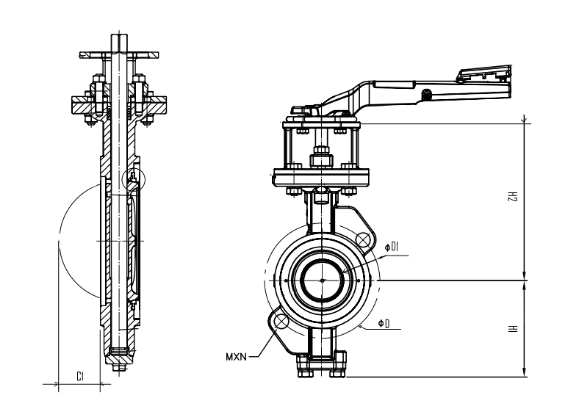

尺寸表（ANSI）
SIZE
|
Face to face L |
H1 |
H2 |
фD |
ФD1 |
C1 |
|
50 |
43 |
99 |
178 |
92 |
37 |
2 |
|
65 |
46 |
110 |
185 |
108 |
63 |
15 |
|
80 |
47 |
128 |
210 |
126 |
78 |
22 |
|
100 |
53 |
150 |
227 |
153 |
95 |
25 |
|
125 |
57 |
163 |
240 |
184 |
118 |
36 |
|
150 |
56 |
176 |
255 |
212 |
143 |
50 |
|
200 |
62 |
206 |
300 |
268 |
188 |
70 |
|
250 |
68 |
238 |
340 |
326 |
236 |
90 |
|
300 |
78 |
269 |
390 |
375 |
282 |
106 |
|
350 |
78/92 |
306 |
426 |
416 |
322 |
125 |
|
400 |
102 |
342 |
490 |
476 |
371 |
140 |
|
450 |
114 |
370 |
515 |
534 |
418 |
157 |
|
500 |
127 |
399 |
550 |
588 |
566 |
177 |
|
600 |
154 |
455 |
640 |
692 |
570 |
210 |
|
600 |
154 |
455 |
640 |
692 |
570 |
210 |
